33 33 091 Replacing both rubber mounts for rear axle carrier (M3 front left and right only)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On the M3 the front rubber mounts must be drawn from above into the rear axle carrier.

Necessary preliminary tasks

Remove COMPLETE REAR AXLE CARRIER

If necessary, assemble special tools 33 4 140 DEVICE , 33 4 142 and 33 4 147 as illustrated.

If necessary, position new thrust pieces 33 4 149 with countersunk screws on special tool 33 4 140 DEVICE .

Fig 1: Assembling Special Tools (33 4 140, 33 4 142 And 33 4 147)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil special tool 33 4 436 slightly before use.

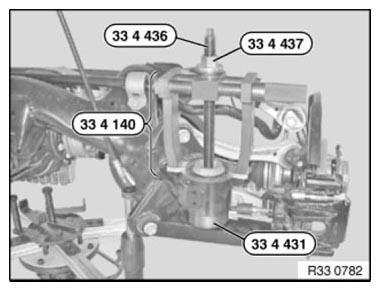

Withdraw rubber mount from bearing bushing with special tools 33 4 436, 33 4 437, 33 4 140 DEVICE and 33 4 431.

Fig 2: Removing Rubber Mount From Bearing Bushing Using Special Tools 33 4 436, 33 4 437

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure special tool 33 4 140 DEVICE is correctly supported on bearing bushing of rear axle carrier.

Fit special tool 33 4 431 on rubber mount in such a way that edge of rubber mount disappears in special tool.

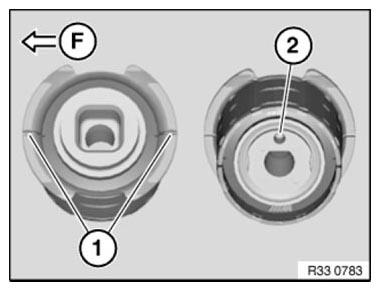

IMPORTANT: Arrows (1) must point in direction of longitudinal axis!

Opening (2) on underside must point to left!

Fig 3: Identifying Rubber Mount Position

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat new rubber mount with Circo Light (sourcing reference: BMW Parts Service).

Oil special tool 33 4 434 slightly before use.

Fig 4: Installing Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

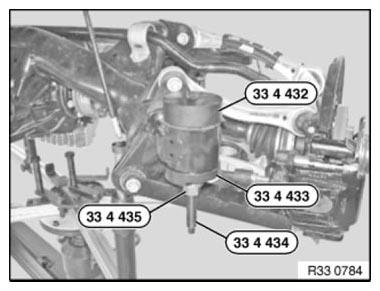

Draw in new rubber mount with special tools 33 4 432, 33 4 433, 33 4 435 and 33 4 434 as far as it will go.

After installation

Bleed BRAKING SYSTEM
