23 00... Replacing speed sensor (transmission main shaft) (GS6S53BZ) (S85/S65): Recycling

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Catch and dispose of gear oil with suitable equipment.

Observe country-specific waste-disposal regulations.

Unlock plug (1) and remove.

Release screw (2).

Remove speed sensor.

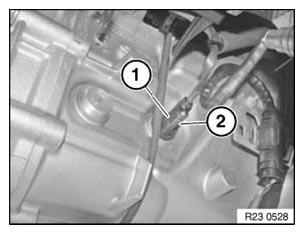

Fig 1: Identifying Screw And Plug

Courtesy of BMW OF NORTH AMERICA, INC.
