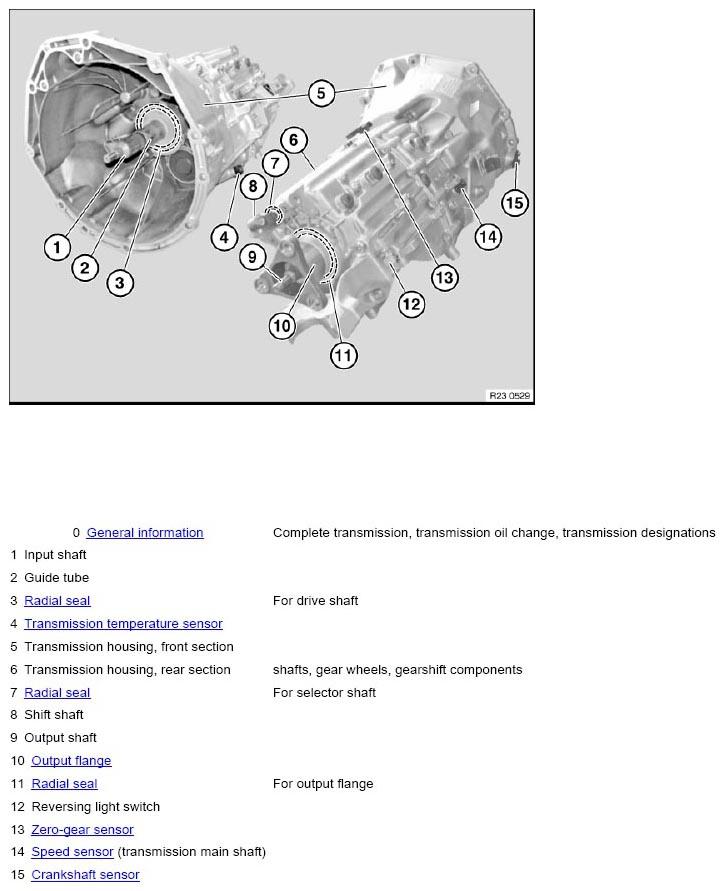

23 00... Overview of transmission housing (GS6-53BZ) (S85/S65)
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
0 General information Complete transmission, transmission oil change, transmission designations
- Input shaft
- Guide tube
- Radial seal For drive shaft
- Transmission temperature sensor
- Transmission housing, front section
- Transmission housing, rear section shafts, gear wheels, gearshift components
- Radial seal For selector shaft
- Shift shaft
- Output shaft
- Output flange
- Radial seal For output flange
- Reversing light switch
- Zero-gear sensor
- Speed sensor (transmission main shaft)
- Crankshaft sensor
