SI number

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

01 15 04 (117)

Consisting of:

1 = 0494992 Spring cup

NOTE: (Spring cup, top)

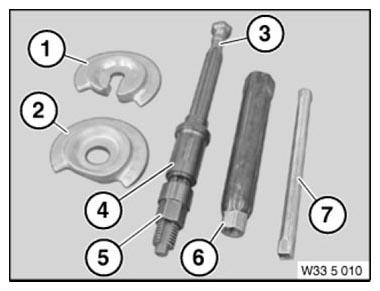

Fig 1: Identifying Spring Tensioner (335010)
G06923922Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0494993 Spring cup

NOTE: (Spring cup, bottom)

3 = 0494994 Spindle

3 = 0494995 Synchronizing key

NOTE: (Synchronizing key with fitting key)

4 = 0494996 Nut

5 = 0494997 Box wrench

NOTE: (Box wrench) SW24

6 = 0494998 Box wrench

NOTE: (Box wrench) SW10
