SI number

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

01 01 89 (989)

Consisting of:

1 = 0492389 Shaped element

NOTE: For hanging up when pressing out the ball joint

2 = 0492390 Bush

NOTE: (Pressure bushing) For pressing the ball joint out of the wishbone

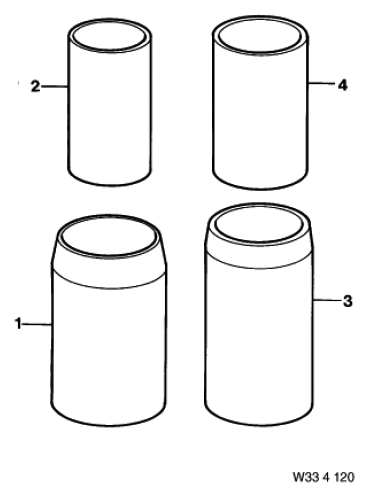

Fig 1: Identifying Device (334120)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0492391 Shaped element

NOTE: For hanging up the wishbone when pressing in the ball joint

4 = 0492392 Bush

NOTE: (Pressure bushing) For pressing the ball joint into the wishbone
