0491536 232000 Puller MW

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Rillex ball-bearing extractor 6206) 9 ball bearings with steel cage - For pulling out the grooved ball bearing of the transmission drive shaft

Consisting of:

1 = 0491537 Claw

NOTE: (Claw for Rillex 6206 (9 x))

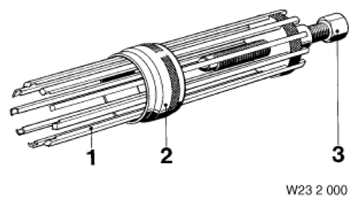

Fig 1: Identifying Puller (232000)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0491538 Holding sleeve

NOTE: (Union sleeve)

3 = 0491539 Spindle

NOTE: (pressure spindle)
