SI number

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

3 = 0490649 Hook

NOTE: (hook) Length 220 mm - Engine: all, except M10 Replaced by 11 9 000 (0 494 362)

5 = 0490651 Cage

NOTE: (Valve spring cage) Engine: M44, M52, M62, S62, S54 Replaced by 11 9 000 (0 494 362)

1 = 0490647 Cage

NOTE: (Valve spring cage) Engine: M43, M73

2 = 0490648 Lever

NOTE: (compression lever) Engine: all, except M10

6 = 0493285 Cage

NOTE: (Valve spring cage) Engine: M47, M47TU, M57, N40, N42, M67, M67TU

4 = 0490650 Cage

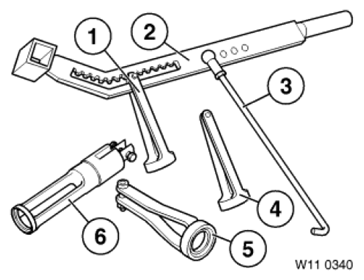

Fig 1: Identifying Fitting Aid (110340)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (valve spring cage) Replaced by 11 0345, engine: M52
