Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove TRIM FOR PEDAL ASSEMBLY

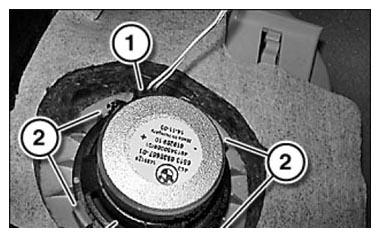

Disconnect plug connection (1).
If necessary, release cable tie from catches (2).
Unlock catches (2) and remove speaker (3) from mounting.
Installation:
Catches (2) must not be damaged.
Guide lugs of mounting must be seated in grooves of speaker (3).
Speaker (3) must snap audibly into place in mounting.
