6326000 Removing and installing/replacing left or right number/license plate light: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Lever number/license plate light (1) 64 1 020 with special tool in direction of arrow out of tailgate.

Disconnect associated plug connection.

Remove number plate light (1).

Replacement:

If necessary, remove BULB .
Note BULB TYPE .

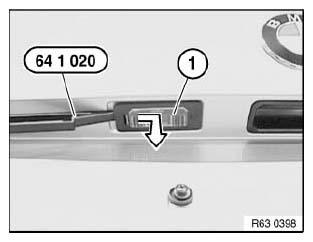

Fig 1: Identifying Number Plate Light (64 1 020)
Courtesy of BMW OF NORTH AMERICA, INC.
