6325000 Removing and installing/replacing auxiliary brake light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip auxiliary brake light cover (1) at retaining points (3).

Remove auxiliary brake light cover (1) in direction of arrow from roofliner (2).

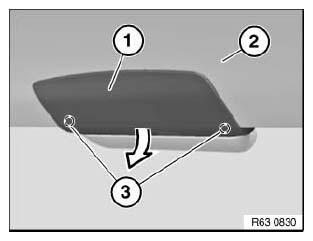

Fig 1: Identifying Auxiliary Brake Light Cover And Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (3) and guides (2) of auxiliary brake light cover (1) must not be damaged.

Make sure cover for auxiliary brake light (1) is correctly seated.

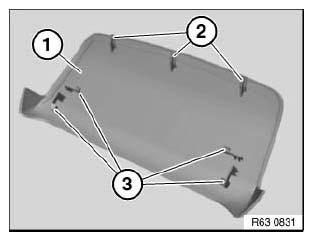

Fig 2: Identifying Retaining Hooks, Guides And Auxiliary Brake Light Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock slide (2) in direction of arrow and remove auxiliary brake light (4) from rear window (3).

Installation:

Make sure auxiliary brake light (4) is correctly positioned on rear window (3).

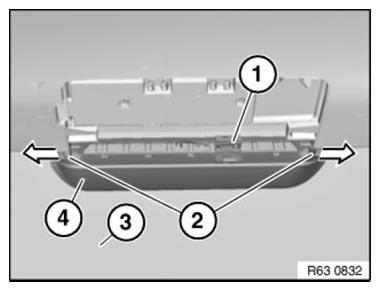

Fig 3: Identifying Plug Connection, Rear Window And Auxiliary Brake Light Cover

Courtesy of BMW OF NORTH AMERICA, INC.
