6577720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

DISCONNECT BATTERY NEGATIVE LEAD and cover
Remove TRIM PANEL FOR DOOR PILLAR (BOTTOM)

Release screw (1).

Loosen screw (2).

Installation:

Tightening torque 65 77 5AZ .

If necessary, remove B-pillar sound insulation (5).

Raise B-pillar sensor (3) slightly through opening in B-pillar and feed out towards rear.

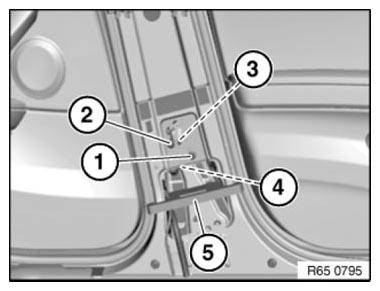

Fig 1: Identifying Screw, B-Pillar Sensor, B-Pillar Sound Insulation And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (4) and disconnect.

Remove B-pillar sensor (3) from B-pillar.

Installation:

Establish correct positioning of B-pillar sensor (1) by means of guide pin (2) and screw (3).

Fig 2: Identifying B-Pillar Sensor, Guide Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
