2511250 Removing and installing/replacing vibration absorber

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove shift lever cover.
Remove SHIFT LEVER KNOB .

Open clamp (1) on vibration absorber with pliers.

Unlock vibration absorber with screwdriver (2) (there is a locking notch on one side only).

Lift out vibration absorber.

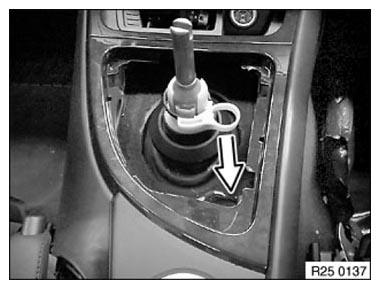

Fig 1: Opening Clamp On Vibration Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In the case of a new vibration absorber which has been attachment to the shift lever, only the retainer (1) still needs to be unlocked.

Make sure the vibration absorber is correctly engaged in the shift lever.

Fig 2: Removing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
