2511071 Replacing knob for shift lever: Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.

Fig 1: Fitting Knob On Shift Lever
G05778030Courtesy of BMW OF NORTH AMERICA, INC.


Push gaiter (1) down until groove (2) is fully exposed.

Fig 1: Pushing Gaiter Down Into Groove
G04748966Courtesy of BMW OF NORTH AMERICA, INC.

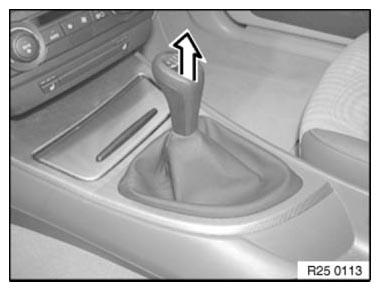

Fit knob on shift lever, align and press on until it snaps noticeably into place.

Fig 1: Fitting Knob On Shift Lever
G06902950Courtesy of BMW OF NORTH AMERICA, INC.
