2511001 Replacing complete shift lever: Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Grease ball joint. See OPERATING FLUIDS .

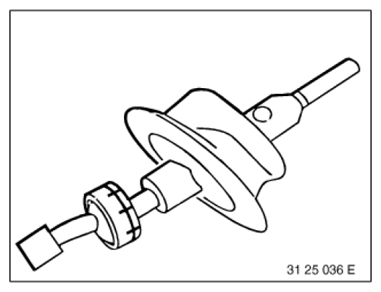

Fig 1: Removing Mount From Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber gaiter from selector lever.

Fig 2: Identifying Rubber Gaiter Of Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Degrease selector lever (1).

Coat rubber bellows on inside of shaped section (2) with Circolight.

Circolight, refer to BMW Parts Service.

Pull rubber gaiter from above over selector lever and align. Arrow (3) on rubber gaiter must point in direction of travel (A).

Fig 1: Identifying Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.
