2511... Overview of gearshift mechanism for manual

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

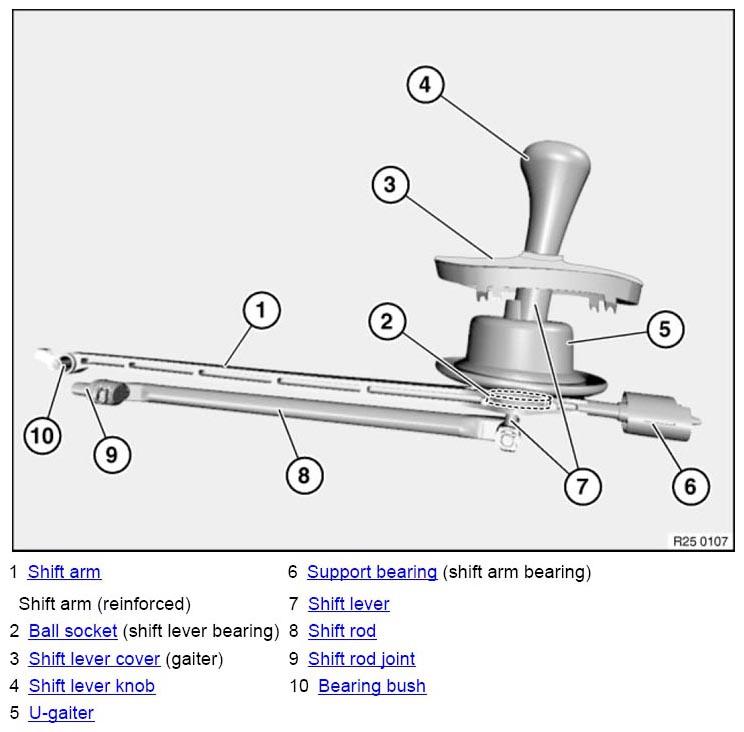

Fig 1: Overview Of Gearshift Mechanism For Manual Transmission
G06902928Courtesy of BMW OF NORTH AMERICA, INC.
