5226030 Removing and installing complete center armrest for rear seat backrest (through-loading)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unlock right backrest and tilt forwards.

Release screw.

Tightening torque 52 26 03AZ .

Open center armrest (1) and remove.

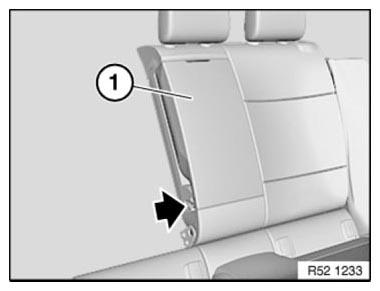

Fig 1: Locating Centre Armrest Screw

G06900282

Courtesy of BMW OF NORTH AMERICA, INC.

Version "without skibag" only

IMPORTANT: Risk of damage!

Pull cover trim (1) at top edges in stages and unclip.

Fig 2: Pulling Cover Trim

G04727360

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips may remain in the backrest frame and must be removed.

Replace faulty clips.

NOTE: Forcefully pull top edge of cover trim (3) forwards and unclip upper retaining lug (1).

Unclip the four retaining lugs (2) in succession.

Fig 3: Pulling Top Edge Of Cover Trim Forward

G04727361

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover trim (1) up and out of lower clips.

Installation:

Make sure cover trim (1) is correctly inserted into lower clips.

If necessary, replace faulty clips.

Fig 4: Pulling Cover Trim

G04727362

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Twist cover trim (1) out of lower retaining lug during removal.

Cover trim (1) must be replaced if retaining lugs are faulty.

Fig 5: Removing Cover Trim

G04727363

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover strip (1) from backrest frame.

NOTE: Cover strip (1) must be replaced if retaining lugs are faulty.

Fig 6: Removing Cover Strip From Backrest Frame

G04727364

Courtesy of BMW OF NORTH AMERICA, INC.
