5226005 Removing and installing/replacing rear seat (through-loading)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

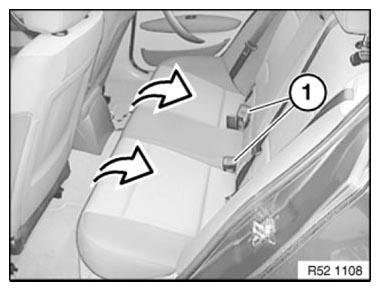

Fig 1: Removing Seat Belt Buckles
G06900303Courtesy of BMW OF NORTH AMERICA, INC.

Release belt lock (1).

Feed middle rear lower belt fitting with belt lock out of rear seat.

Lift out rear seat.

Fig 2: Locating Belt Lock
G04727352Courtesy of BMW OF NORTH AMERICA, INC.
