5224311 Removing and installing/replacing lock for left or right rear seat backrest

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform EMERGENCY ACTUATION for rear seat backrest (1).

Unfasten screws (2).

Tightening torque 52 24 02AZ .

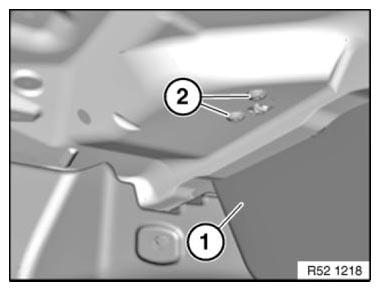

Fig 1: Identifying Rear Seat Backrest And Screws

G06900262

Courtesy of BMW OF NORTH AMERICA, INC.

REMOVE backrest and set down forwards.

Remove lock (1) completely from installation opening.

Fig 2: Removing Rear Seat Backrest Lock

G04727320

Courtesy of BMW OF NORTH AMERICA, INC.

Display bridge (1) can be pressed out of lock during emergency actuation.

Remove display bridge (1) from lock.

Display bridge (1) does not have to be reinstalled.

Fig 3: Identifying Bridge

G04727321

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide guide lug (1) of lock into opening (2).

Fig 4: Sliding Guide Lug Of Lock

G04727322

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting lock:

Slacken screws
Firmly push engaged backrest back
Tighten down screws
IMPORTANT: Check backrest lock without fail.
