Necessary preliminary work

• Disconnect BATTERY EARTH LEAD
• Remove HEAD RESTRAINT
• E90/E91 only from build date 09/08 and F25:

Remove CRASH-ACTIVE HEAD RESTRAINT

Installation note:

• Powerlok screws must be replaced and must not  be reused
• Powerlok screws are mechanical screw locks with trilobular threads

Move seat to upper back position.

Release and dispose of screws (1).

Fig 1: Identifying Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move seat forwards and position flush with seat runners.

Unclip release tab (2) for belt end fitting trim (1) with plastic wedge.

Fig 2: Removing Release Tab For Belt Anchor Fitting Trim Using Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

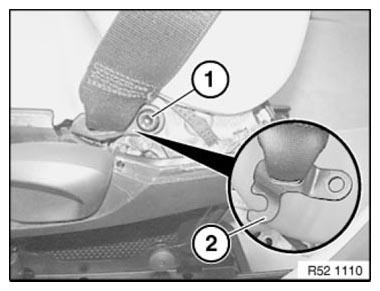

Release screw (1).

Tightening torque 72 11 2AZ .

Remove end fitting (2).

Installation note:

Make sure end fitting (2) is correctly seated on seat mechanism pin.

Fig 3: Identifying End Fitting On Seat Mechanism Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Release and dispose of screws (1).

Fig 4: Identifying Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Lift out front seat.

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Carpet must not get between seat rails and floor panel in area of attachment points (squeaking noises)
• Replace microencapsulated screws
• Insert all screws loose to avoid twisting
• Tighten down all screws to specified torque

  Tightening torque 52 10 1AZ .
