Installing new SAC clutch

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

N52

Screws must be replaced.

Jointing torque and angle of rotation must be observed without fail.

IMPORTANT: Handle clutch disk carefully, do not touch surfaces of friction pads.

Install clutch plate (1) in correct position.

Note designation for "engine side"/"transmission side".

Centre clutch plate (1) with special tool.

SPECIAL TOOLS DESCRIPTION CHART

Special tool	Transmission
21 2 141	S6S 420G; S6S 560G; S5D 390Z
21 2 142	S5D 200G; S5D 250G; S5D 260Z; S5D 310Z
21 2 201	GS6-37BZ
21 2 230	GS6-53DZ
21 2 250	GS6-17BG

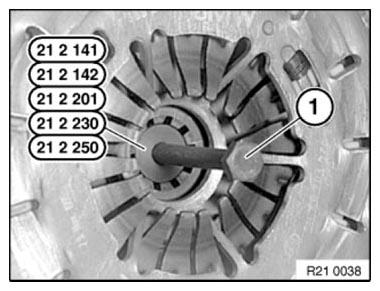

Fig 1: Identifying Clutch Plate And Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Push SAC clutch onto dowel pins (1) located in flywheel and screw down.

Tightening torque: 21 21 1AZ .

Fig 2: Locating SAC Clutch Onto Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Locking piece (1) may only be removed with SAC

screw-mounted clutch!

Carefully unscrew locking piece (1) clockwise or counterclockwise with a hexagon socket wrench 14 A/F (2).

NOTE: A slight snapping of the plate spring while unscrewing is possible.

Fig 3: Removing Locking Piece Using Hexagon Socket Wrench 14 A/F

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw special tool from clutch plate with aid of accompanying screw (1).

Fig 4: Removing Clutch Plate Screw Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
