2431012 Replacing torque converter radial shaft seal (GA6L45R)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION .

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission fluid: Dexron VI automatic transmission fluid ; BMW part number 83 22 0 397 114 (4 liters)

Failure to comply with this instruction will result in serious damage to the transmission.

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450 .

Remove TORQUE CONVERTER .

Fig 1: Securing Transmission Using Special Tool (24 0 200)

G04726128

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining ring (1) with a suitable tool (2).

Fig 2: Removing Retaining Ring Using Special Tool

G04751795

Courtesy of BMW OF NORTH AMERICA, INC.

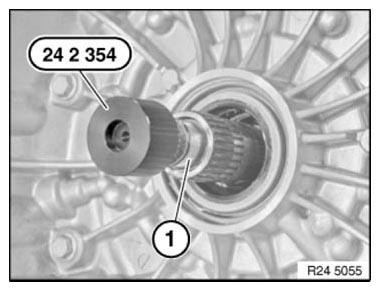

Attach special tool 24 2 354 to input shaft (1).

Fig 3: Installing Special Tool (24 2 354) To Input Shaft

G06897942

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.

Screw in special tool 24 2 352 to remove radial shaft seal.

Fig 4: Removing Radial Shaft Seal Using Special Tool (24 2 352) And (24 2 351)

G04726130

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on radial shaft seal.

Drive in radial shaft seal (1) with special tool 24 2 360 as far as it will go.

Fig 5: Installing Radial Shaft Seal Using Special Tool (24 2 400)

G05758108

Courtesy of BMW OF NORTH AMERICA, INC.
