5147000 Removing and installing/replacing front (inside) left or right entrance cover strip: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to side shown.

Use graphics in a mirror-inverted way.

IMPORTANT: Do not raise entrance cover strip (1) over entire length simultaneously.

E84 only:

clipped 3 times(2).

Unclip entrance cover strip (1) from clip (2), starting from the rear and moving forward, using special tool 00 9 317 .

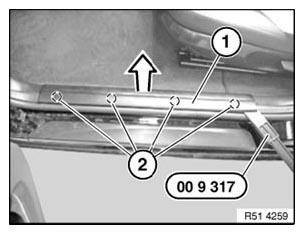

Fig 1: Removing Entrance Cover Strip From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary lift clip (1) from floorplate (2) and clip on entrance cover strip.

E84 only:

clipped 3 times(1).

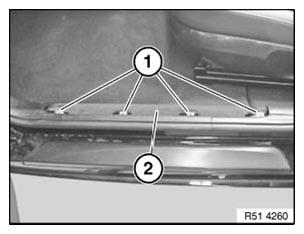

Fig 2: Identifying Entrance Cover Strip Clip And Floorplate

Courtesy of BMW OF NORTH AMERICA, INC.
