5143251 Removing and installing/replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems.
IMPORTANT:
Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

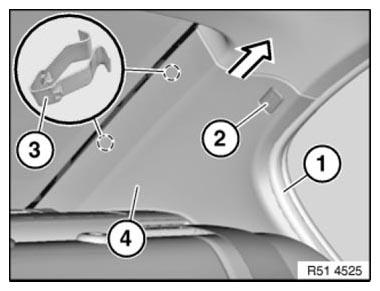

Detach mucket (1) in area of trim panel for roof pillar (4).
Lever out cap (2) and release screw underneath.
Tightening torque 51 43 2AZ .
Pull trim panel for roof pillar (4) in direction of arrow and detach from clips (3).
Installation:
Fit trim panel (4) over openings for clips (3) and snap into place.
Installation:

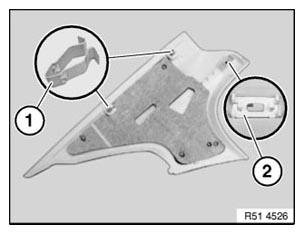

Clips (1 and 2) must not be damaged or missing.
If necessary, replace faulty clips (1 and 2).
