5143201 Removing and installing or replacing trim for roof pillar at front (A-pillar), left or right: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Unclip protective cap (1) with special tool 00 9 341 and remove.

Fig 1: Identifying Protective Cap With Special Tool (00 9 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Release mucket (1) in area of trim for front roof pillar (2).

Release screw (3), tightening torque 51 43 1AZ .

Unclip trim for front roof pillar (2) from mounting point (4).

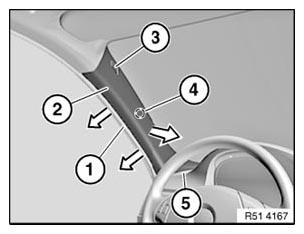

Feed trim for front roof pillar (2) out of instrument panel trim (5) and remove.

Fig 2: Removing Trim Form Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bore.

If necessary, replace faulty clip (1).

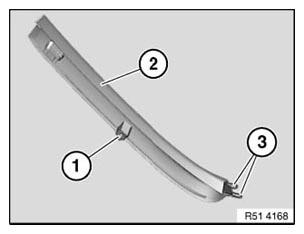

Make sure guides (3) of trim for front roof pillar (2) are correctly seated in associated mountings.

Position trim for front roof pillar (2) preassembled with clip (1) on associated bore and clip into place.

Fig 3: Identifying Front Roof Pillar Trim, Guides And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
