Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove COVER ON DOOR HANDLE

Version with roller sun blind:

Remove ROLLER SUN BLIND on fixed side window

Release screws (1).

Tightening torque 51 42 1AZ .

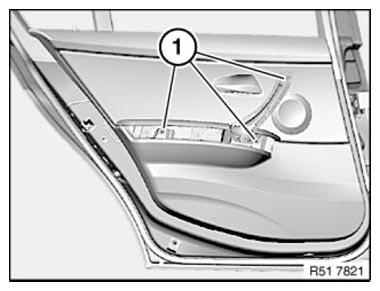

Fig 1: Identifying Screws

G06901793

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start by unclipping door trim panel (2) at bottom.

Unclip clips (1) for door trim panel (2) with special tool 00 9 317 .

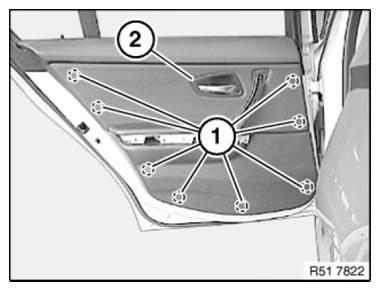

Fig 2: Identifying Clips And Door Trim Panel

G06901794

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip door trim panel (1) at top from retainers (2) and remove.

Disconnect plug on power window switch.

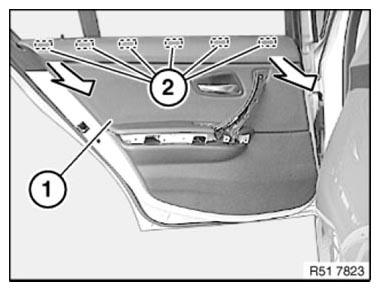

Fig 3: Identifying Door Trim Panel And Retainers

G06901795

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 4: Identifying Door Lock And Hook Bowden Cable

G04749830

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clips are installed in correct position.

Clips (1) are white.

Clip (2) is brown and shorter than clips (1).

If necessary, replace faulty clips.

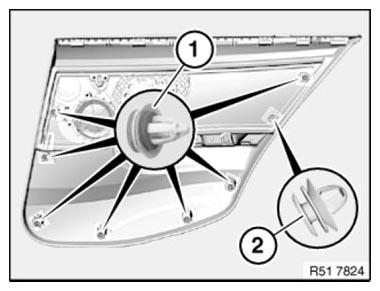

Fig 5: Identifying White Clips And Brown Clip

G06901797

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage
If necessary, align linkages
