5141019 Removing and installing/replacing door handle on door trim panel at front (passenger side) left or right: Replacement

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

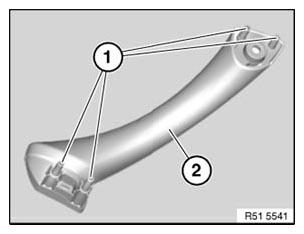

Drill out holes (1) in door handle (2) to 3.0 mm dia.

Fig 1: Identifying Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

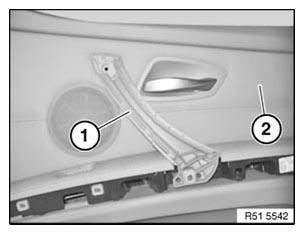

Slide door handle (1) into door trim panel (2).

Fig 2: Identifying Door Handle And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

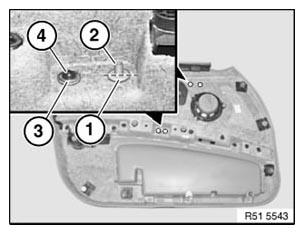

Turn door trim panel over and lay with door handle on clean surface
Lay large washer (1) on welding pin (2) and mark
Remove door handle and saw off all welding pins (2) slightly below marking
Insert door handle
Fit large washer (1) and small washer (3)
Secure with screw (4)
Tighten down all 4 screws

Tightening torque 51 41 3AZ .

Fig 3: Identifying Washer On Welding Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
