Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT DOOR TRIM PANEL
Remove SPEAKER
Remove SPEAKER TRIM
Remove INSIDE DOOR OPENER
Remove ROCKER SWITCH FOR SIDE WINDOW OPERATION

Version with light package:

Remove FOOTWELL LIGHT .

Cut out cutout (1) for entrance light on new door trim panel with scalpel.

Fig 1: Identifying Cutout And Entrance Light On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

US/CND national-market version:

If necessary, replace crashpad (1).

Pull off protective film from rear side of crashpad (1).

Stick crashpad (1) on door trim panel.

Installation:

Positioning by way of uniform distance to mounting (2) and outer edge (3).

Press on crashpad (1) firmly for approx. 20 seconds.

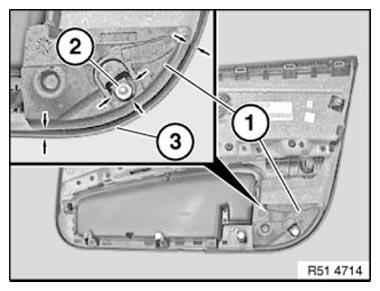

Fig 2: Identifying Crashpad, Outer Edge And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
