5131... Remove windscreen with "Roll Out 2000": Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove windscreen with "Roll Out 2000"

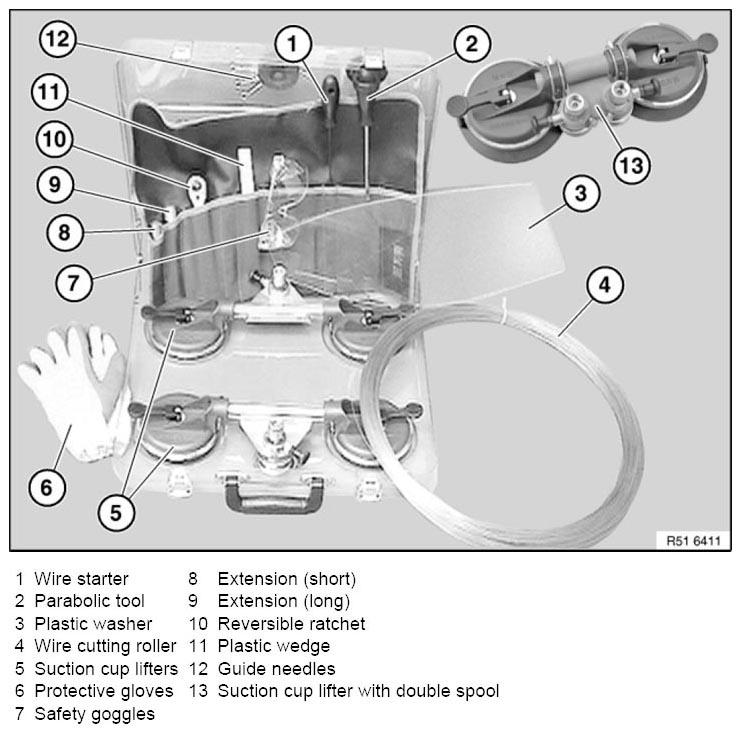

Fig 1: Identifying WindScreen Components

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both paint and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.

Sourcing reference:

See Aftersales Assistance Portal (ASAP) - Service/Technical - Workshop Equipment (Start BMW) - Shop Workshop Equipment or at www.bmwgroup.com

WARNING: Follow safety instructions See 5100... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS or 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION for working on vehicles with airbag systems (risk of injury).

IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).

IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.
Lubricate spool if lock rattling becomes too loud.
Always wear safety goggles and protective gloves for your own safety.

Mounting suction cup lifters on windscreen or rear window:

Fig 2: Identifying Suction Cup Lifters Position On Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Secure position of suction cup lifters as shown:
1. Suction cup lifter with double spool
2. Suction cup lifter with single spool
3. Window
4. Cutting wire

  Fig 3: Identifying Suction Cup Lifters Position On Windscreen
  Courtesy of BMW OF NORTH AMERICA, INC.
