5122180 Removing and installing/replacing cover on outside handle, left or right: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

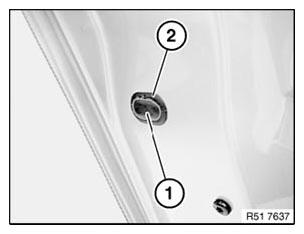

Lever out cap (1) and frame (2).

Fig 1: Identifying Cap And Frame

G06202596

Courtesy of BMW OF NORTH AMERICA, INC.

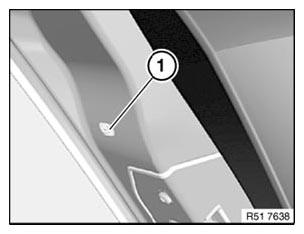

Release screw (1).

Fig 2: Identifying Screw

G06202597

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover (1) in direction of arrow with outside door handle (2) opened slightly.

Fig 3: Removing Outside Door Handle Cover

G04791637

Courtesy of BMW OF NORTH AMERICA, INC.

Version with light package:

Installation:

Make sure door handle light (1) is correctly positioned in area (2).

Guides (3) must be correctly seated in carrier for outside door handle (4).

Fig 4: Identifying Guides Of Outside Door Handle Light

G04727761

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) must not be damaged.

Fig 5: Identifying Guides

G04752629

Courtesy of BMW OF NORTH AMERICA, INC.
