Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove INSTRUMENT PANEL TRIM , bottom right

Release screws (1) and remove counter-support (2).

Installation:

Align glove box and screw down counter-support (2).

Check gap dimensions and closing comfort of glove box, realign if necessary.

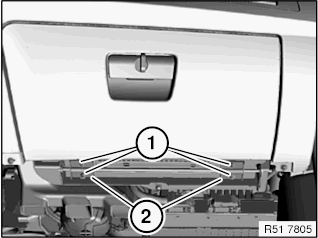

Fig 1: Identifying Counter Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clip (1).

Remove glove box (2) in inward direction.

If necessary, disconnect plug-in contacts.

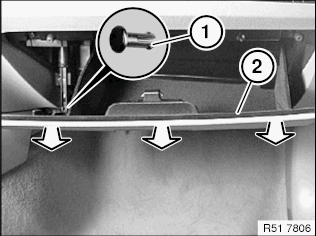

Fig 2: Removing Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.
