5116026 Replacing mirror glass: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury!
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.

IMPORTANT: Risk of damage!
Bring exterior mirror to room temperature to prevent catches from breaking off.

Graphics are only an example (The graphics used are from E60).

IMPORTANT: Risk of damage!
Secure mirror glass (1) against falling out.

NOTE: Graphics

Press mirror glass (1) on side vehicle by hand to full extent.

Unclip mirror glass (1) all around from outer side with special tool 00 9 317 .

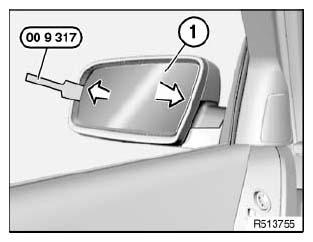

Fig 1: Removing Mirror Glass From Outer Side Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect associated plug connections, remove mirror glass (1).

Installation:

Retaining lugs (1) must not be damaged.

Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.

Ensure correct locking.

Make sure mirror adjusting drive functions correctly.

Fig 2: Identifying Retaining Lugs And Mirror Glass
