5113316 Removing and installing/replacing trim strip on roof gutter at left or right: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure that body is not damaged.

Starting at front, release trim strip (1) with special tool 00 9 317 from clips (2).

Installation:

To avoid leaks and noises, check all clips (2) for visible damage.

If necessary, replace faulty clips (2).

Align clips (2) on body and fit trim strip (1).

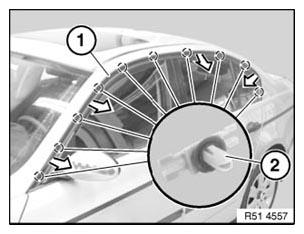

Fig 1: Removing Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) must not be damaged.

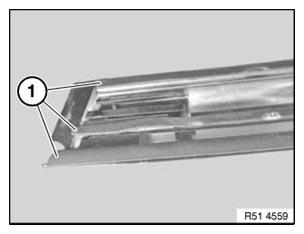

Fig 2: Identifying Seals

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Carry trim strip by its middle section only (risk of damage)
Perform installation work with a second person helping
Prepositioning of trim strip
Ensure drip molding runs parallel to side frame (risk of breakage)
