5113025 Removing and installing/replacing left or right trim on engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove trim (2) in upwards direction.

Tightening torque 51 13 7AZ .

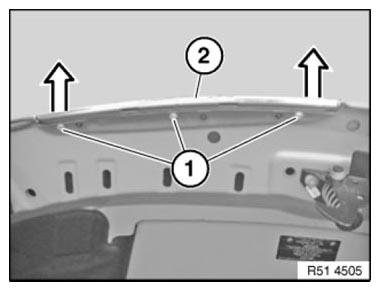

Fig 1: Removing Trim
G06853838Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on trim (2) must not be damaged.

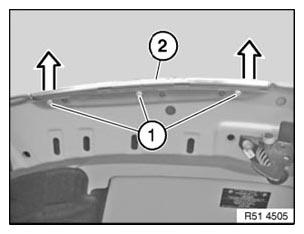

Fig 2: Identifying Guides On Trim
G06202398Courtesy of BMW OF NORTH AMERICA, INC.
