Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory
Disconnect BATTERY EARTH CABLE
Remove MICROFILTER HOUSING
Remove TENSION STRUT ON SPRING STRUT DOME on right

Release screws (1).

Slacken nut (2).

Lift out right heater end plate (3).

Installation:

Ensure gasket (4) is correctly seated.

Fig 1: Lifting Out Right Heater End Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock fasteners (1) from below and slide upwards approx. 10 mm.

Unlock locks (2) in direction of arrow.

Remove cover (3).

Fig 2: Opening Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock plug connection (2) in direction of arrow and disconnect.

Pull wiring harness grommet (5) out of electronics box and remove wiring harness (4).

Pull wiring harness grommet (3) out of electronics box and remove wiring harness with equipment carrier (6).

Installation:

Make sure wiring harness grommets (3, 5) are correctly seated in electronics box.

Fig 3: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, press locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 4: Pressing Locking Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, press locking tab (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 5: Pressing Locking Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Read fault memory.
Disconnect NEGATIVE BATTERY CABLE
Remove MICROFILTER HOUSING
Remove TENSION STRUT ON SPRING STRUT DOME on right

Release screws (1).

Slacken nut (2).

Lift out right heater end plate (3).

Installation:

Ensure gasket (4) is correctly seated.

Fig 1: Lifting Out Right Heater End Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock fasteners (1) from below and slide upwards approx. 10 mm.

Unlock locks (2) in direction of arrow.

Remove cover (3).

Fig 2: Unlocking Locks In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out plug connection (2), fuse carrier (3) and wiring harness grommet (4) from electronics box (1).

Installation:

Make sure wiring harness grommets (4) are correctly seated in electronics box (1).

Fig 3: Identifying Electronics Box With Plug Connection, Fuse Carrier And Wiring Harness Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

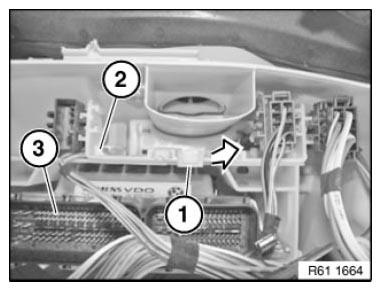

Unlock DME control unit at holders (1) and raise slightly.

Pull tab (3) in direction of arrow out of housing and disconnect plug connections (2) on DME control unit.

Fig 4: Pulling Tab

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, press locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 5: Pressing Locking Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, press locking tab (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 6: Pressing Locking Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock device holder (2) at holder (1) and remove.

Remove DME control unit (3).

Fig 7: Removing DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock device holder (2) at holder (1) and remove.

Fig 8: Identifying DME Control Unit Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Remove device holder (1) from electronics box.

Fig 9: Identifying DME Control Unit Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).
