1214523 Replacing inlet camshaft pulse generator (N52, N52K, N51, N53)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
If necessary, remove radiator cover

Unlock plug (1) and remove.

Release bolt.

Installation:

Replace screw.

Tightening torque 12 14 3AZ .

Remove pulse generator (2).

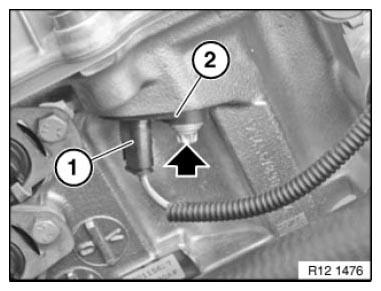

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Now clear the fault memory.
