Mounting engine on assembly stand (N51)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Aluminum screws/bolts must be replaced each time they are released.
The end faces of aluminum screws/bolts are painted blue for the purposes of reliable identification.
Jointing torque and angle of rotation must be observed without fail (risk of damage).
The end faces of aluminum screws/bolts are painted blue for the purposes of reliable identification.
Jointing torque and angle of rotation must be observed without fail (risk of damage).
Necessary preliminary tasks:
- Remove engine.

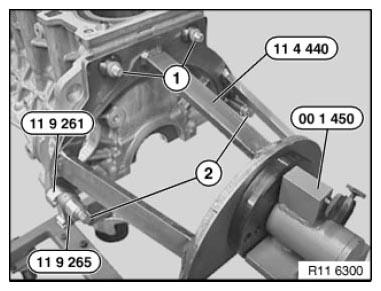

Bolt engine or engine block with steel bolts (1) and aluminum bolts (2) to special tool 11 4 440.
To release central bolt, bolt on special tools 11 9 261 and 11 9 265 as well.
Mount engine with special tool 11 3 370 to SPECIAL TOOL 00 1 450 .
