Engine identification

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Punch engine numbers at marked surface with number punch.

Magnesium crankcase with sticker

M47/M47TU/M47T2

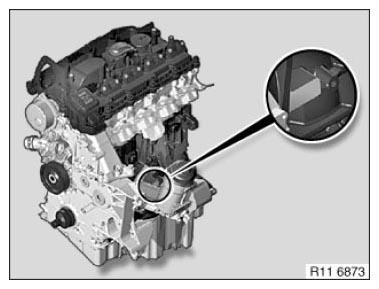

Fig 1: Identifying Engine Identification Number - M47/M47TU/M47T2

G06902151

Courtesy of BMW OF NORTH AMERICA, INC.

M57/M57TU/M57T2

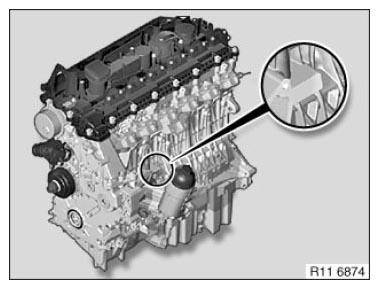

Fig 2: Identifying Engine Identification Number - M57/M57TU/M57T2

G06902152

Courtesy of BMW OF NORTH AMERICA, INC.

M67/M67TU

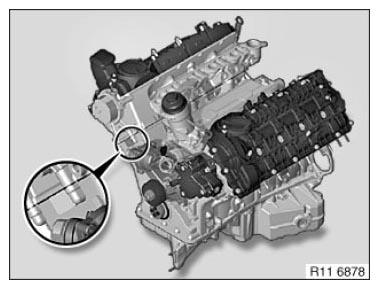

Fig 3: Identifying Engine Identification Number - M67/M67TU

G06902153

Courtesy of BMW OF NORTH AMERICA, INC.

N47/N47S/N47C/N57 N57S

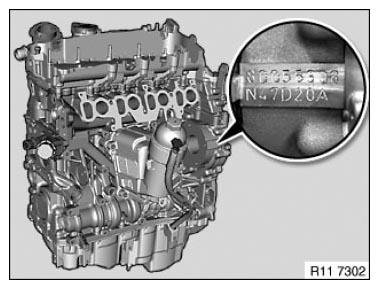

Fig 4: Identifying Engine Identification Number - N47/N47S/N47C/N57 N57S

G06902154

Courtesy of BMW OF NORTH AMERICA, INC.

M52/M52TU

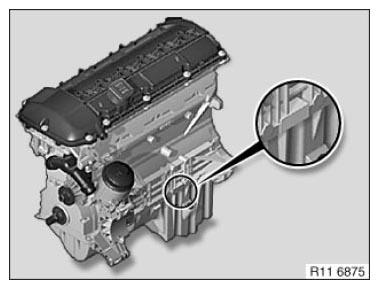

Fig 5: Identifying Engine Identification Number - M52/M52TU

G06902155

Courtesy of BMW OF NORTH AMERICA, INC.

M54

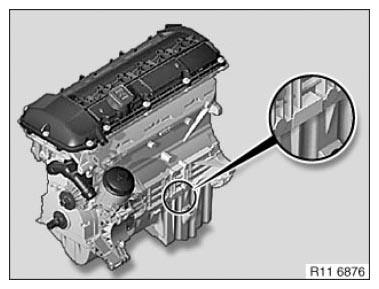

Fig 6: Identifying Engine Identification Number - M54

G06902156

Courtesy of BMW OF NORTH AMERICA, INC.

M56

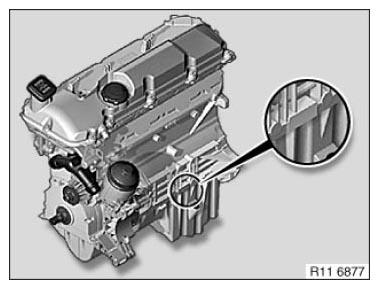

Fig 7: Identifying Engine Identification Number - M56

G06902157

Courtesy of BMW OF NORTH AMERICA, INC.

N40/N45/N45T/N43

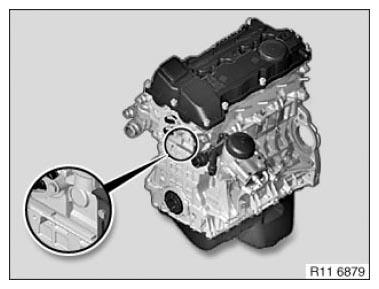

Fig 8: Identifying Engine Identification Number - N40/N45/N45T/N43

G06902158

Courtesy of BMW OF NORTH AMERICA, INC.

N42/N46/N46T

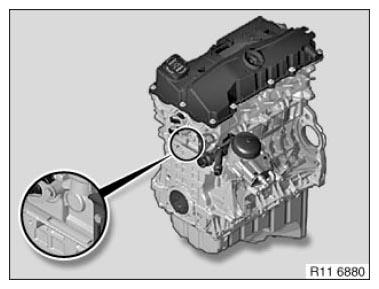

Fig 9: Identifying Engine Identification Number - N42/N46/N46T

G06902159

Courtesy of BMW OF NORTH AMERICA, INC.

N51/N52/N52K/N52T/N53/N54/N55

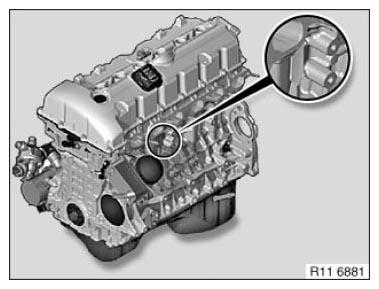

Fig 10: Identifying Engine Identification Number - N51/N52/N52K/N52T/N53/N54/N55

G06902160

Courtesy of BMW OF NORTH AMERICA, INC.

N62/N62TU

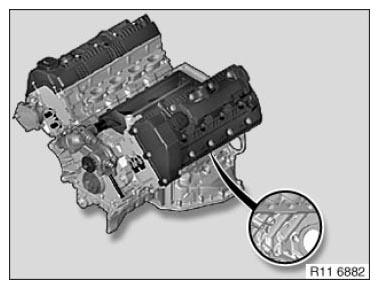

Fig 11: Identifying Engine Identification Number - N62/N62TU

G06902161

Courtesy of BMW OF NORTH AMERICA, INC.

N73

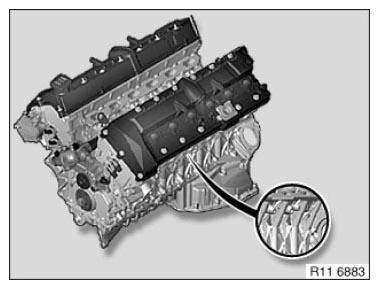

Fig 12: Identifying Engine Identification Number - N73

G06902162

Courtesy of BMW OF NORTH AMERICA, INC.

S54

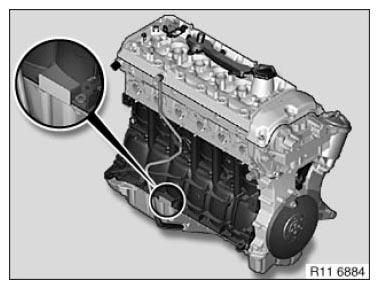

Fig 13: Identifying Engine Identification Number - S54

G06902163

Courtesy of BMW OF NORTH AMERICA, INC.

S85/S65

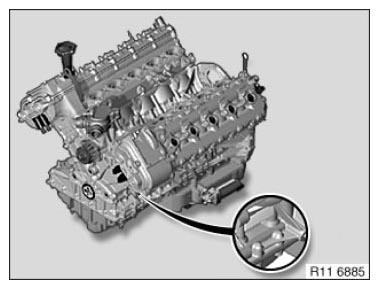

Fig 14: Identifying Engine Identification Number - S85/S65

G06902164

Courtesy of BMW OF NORTH AMERICA, INC.

W10/W11

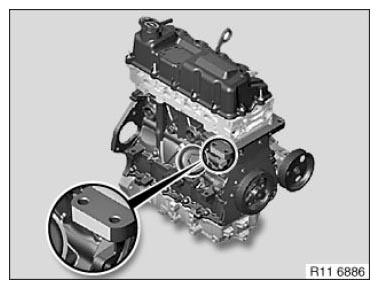

Fig 15: Identifying Engine Identification Number - W10/W11

G06902165

Courtesy of BMW OF NORTH AMERICA, INC.

N12/N14/N16/N18

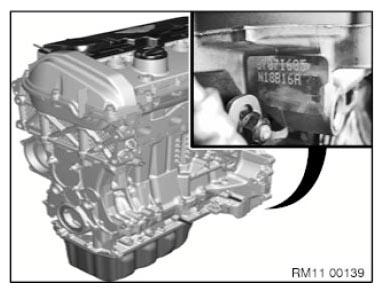

Fig 16: Identifying Engine Identification Number - N12/N14/N16/N18

G06902166

Courtesy of BMW OF NORTH AMERICA, INC.

W17

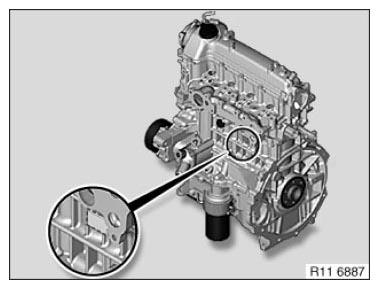

Fig 17: Identifying Engine Identification Number - W17

G06902167

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
