1100670 Securing engine in installation position (N51)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

IMPORTANT: Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.

Necessary preliminary tasks:

Secure ENGINE BONNET/HOOD IN SERVICE POSITION
Remove INTAKE FILTER HOUSING

Installation:

Replace damaged cover caps.

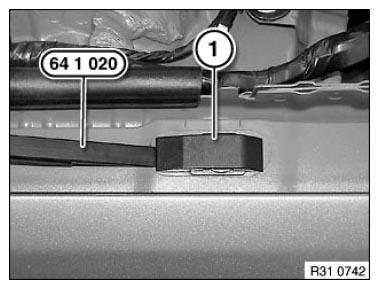

Fig 1: Removing Cover Caps Of Side Panel Screw Connection Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble transverse member 00 6 000 with SPECIAL TOOLS :

00 6 051 (profile strips)
00 6 070 (supports)
00 6 052(supports)
00 6 031 (connections)

complete.

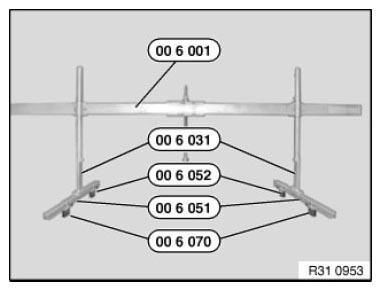

Fig 2: Identifying Special Tools For Assembling Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use towing hook (72 15 8 108 670).

Fig 3: Identifying Special Tool (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.

IMPORTANT: Aluminium-magnesium materials.
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage).

Release front screws (1) on acoustic cover (2).

Tightening torque 11 12 6AZ .

Fig 4: Identifying Front Screws On Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Raise acoustic cover (1) slightly.

Screw in towing hook (2) and tighten down to approx. 30 Nm.

Fig 5: Tightening Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on front panel (2).

Tightening torque 41 33 1AZ .

Fig 6: Identifying Screw On Front Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Attaching Special Tool To Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Fit transverse member 00 6 000 with a second person helping.
Place supports in front in the area of front panel attachment and in the rear on the fasteners of the side panels.
Bolt connections of transverse member 00 6 001 must point to windscreen.

Adapt bevel of special tool 00 6 052 to inclination of side panels.

SPECIAL TOOL 00 6 070 consists of a left and right support.

Secure chain with coat hook 00 6 080 to spindle 00 6 002 and align centrally over towing hook.

Attach special tool to towing hook.

WARNING: Risk of injury!
Tighten down all adjusting screws and nuts on transverse member 00 6 000.

Fig 8: Identifying Special Tools For Assembling Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise engine approx. 10 mm with transverse member.

Installation:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 9: Identifying Engine Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.
