1100 Removing and installing/replacing acoustic cover (N51)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 328xi, 2010 BMW 328i, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
Unfasten screws.
Tightening torque 11 12 6AZ .

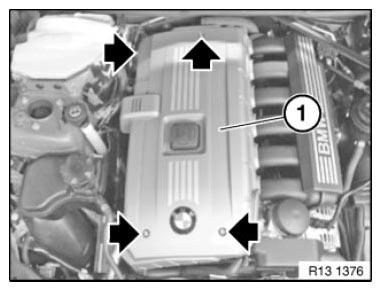

Remove acoustic cover (1).
NOTE:
For purposes of improved clarity, illustration and descriptions shows wiring harness and tension strut removed.
