6422191 Removing and installing/replacing rear compartment fresh-air grille
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

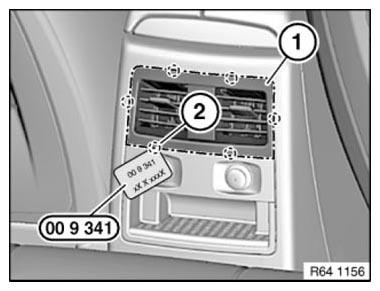

Lever out rear compartment fresh air grille (1) with special tool 00 9 341 at retaining points (2).
Disconnect associated plug connection and remove rear compartment fresh-air grille (1).
