6411856 Removing and installing/replacing servodrive for central kinematics (A/C control)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING

Detach right footwell heating duct (1) in area (2) in direction of arrow.

Detach right footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from right rear compartment heating duct (4).

Fig 1: Removing Right Footwell Heating Duct With Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2).

Detach servodrive for central kinematics (3) in direction of arrow from heater/air conditioner (4).

Installation:

Place servodrive for central kinematics (3) over guide pin (5).

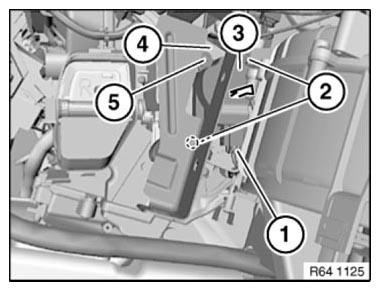

Fig 2: Identifying Plug Connection, Screws, Servodrive For Central Kinematics And Heater/Air Conditioner

Courtesy of BMW OF NORTH AMERICA, INC.
