8621... Adjusting rear lid to fit: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Torque, height adjustment, 86 21 7AZ .

Tightening Torque, depth adjustment, 86 21 9AZ .

Fig 1: Moving Rear Lid

G04766454

Courtesy of BMW OF NORTH AMERICA, INC.

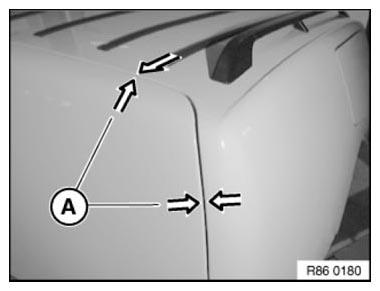

Adjust gap (A) evenly all around without displacement and correct if necessary.

Fig 2: Adjusting Gap

G06903489

Courtesy of BMW OF NORTH AMERICA, INC.

Check lid in transition (B) to hood for displacement and correct if necessary (flush).

Fig 3: Checking Lid In Transition

G04766456

Courtesy of BMW OF NORTH AMERICA, INC.

To align lid in transverse direction, you can install or remove plastic washers (3) between hinge bracket (1) and mounting bracket (2).

There must always be a plastic washer (3) fitted on left and right sides of mounting bracket (2). Plastic washers are available in thicknesses of 1 mm and 3 mm.

Fig 1: Identifying Hinge Bracket, Mounting Bracket And Plastic Washer

G04766457

Courtesy of BMW OF NORTH AMERICA, INC.

Check lid in transition (C) to hood (flush) and correct if necessary. Correction is made by inserting or omitting plastic washers (refer to Fig 1).

Fig 2: Checking Lid In Transition

G04766458

Courtesy of BMW OF NORTH AMERICA, INC.
