3441000 Removing and installing/replacing handbrake lever

Necessary preliminary tasks

• Disconnect BATTERY NEGATIVE LEAD
• Remove AIRBAG CONTROL UNIT

Lock adjuster unit (ASZE).

Actuate parking brake lever. Connect special tool 32 1 030. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

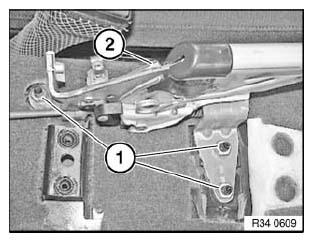

Fig 1: Pressing Adjusting Spring Stop Using Special Tool (32 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 34 41 5AZ .

Remove bracket for center console (2).

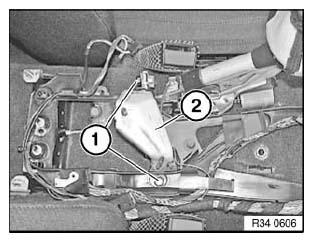

Fig 2: Identifying Centre Console Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect cable (1) from handbrake check switch.

Unclip cable bracket (2) at point (3).

Remove cable bracket and place forward.

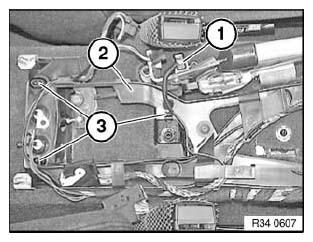

Fig 3: Identifying Handbrake Check Switch Cable And Cable Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

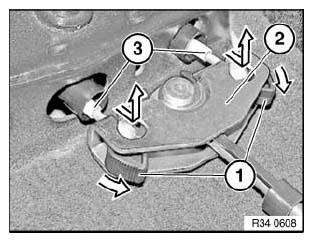

Fig 4: Pressing Retainer In Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove parking brake lever (2).

Installation:

Replace self-locking nuts.

Tightening torque 34 41 1AZ . Parking brake lever and adjustment unit (ASZE) are only exchanged completely as a single unit.
