3352031 Replacing rear left or right rubber mount for shock absorber mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335i, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury!
Car may tilt off lifting platform if the workshop jack is incorrectly handled.

Release nut; if necessary brace on hex head.

Tightening torque 33 52 2AZ .

Raise wheel carrier with workshop jack until shock absorber can be removed from rubber mount.

Installation:

Replace self-locking nut.

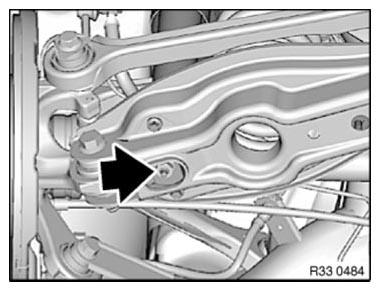

Fig 1: Locating Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 33 52 3AZ .

Press shock absorber upwards and remove rubber mount (2) from camber arm.

Fig 2: Identifying Rubber Mount And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
