3332031 Replacing rubber mount for trailing arm in wheel carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335i, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: E90, E91 from 09/2008:
For driving dynamic reasons, both rubber mounts must be replaced on first replacement. After replacing the rubber mounts, mark wheel carriers with punch marks. If the punch marks are provided, the rubber mounts can be changed again individually.

Necessary preliminary tasks

Remove TRAILING ARM FROM WHEEL CARRIER

Removing rubber mount

Remove rubber mount with special tool 33 4 465, 33 4 466, 33 4 475, 33 4 474 and 33 4 472.

Fig 1: Removing Rubber Mount Using Special Tools

G04726494

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount

Insert rubber mount with spray-on points facing upwards in special tool 33 4 451, 33 4 452, 33 4 454, 33 4 453 and pull together.

Insert rubber mount in special tool 33 4 473.

Fig 2: Installing Rubber Mount Using Special Tools

G04726495

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Spray-on points of rubber mount must point to rear!

Align rubber mount by way of slot (1) at an angle to wheel carrier.

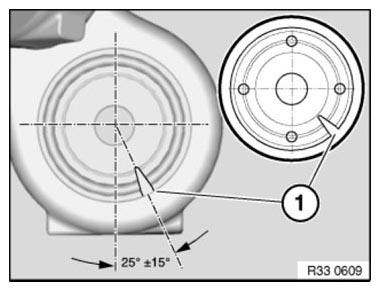

Fig 3: Identifying Slot

G06903131

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rubber mount with special tool 33 4 465, 33 4 466, 33 4 475, 33 4 474 and 33 4 473 partially into the wheel carrier.

Remove special tool and pull in rubber mount as far as it will go.

Fig 4: Pulling Rubber Mount Using Special Tools

G04726497

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out wheel/chassis alignment check See 3200150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 3200155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
