0011... Checking/topping up oil level in rear differential
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335i, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear differential, it is essential to use only approved gear oils. See REAR AXLE - OPERATING FLUIDS .
To avoid serious damage to the rear differential, it is essential to use only approved gear oils. See REAR AXLE - OPERATING FLUIDS .

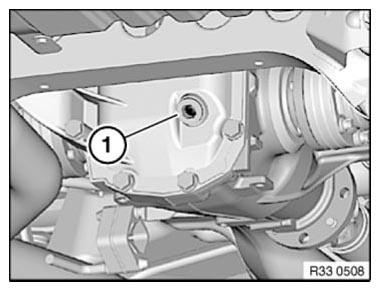

Undo oil filler plug (1).
Check oil level.
If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).
Installation:
Replace oil filler plug (1).
Tightening torque 33 11 2AZ .
