2331545 Replacing both locking bolts for 6th/reverse gear (I transmission) - transmission removed: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: In gasoline engines, sealing caps 1 and 2 are located above the circlip.

=Locking bolt for 6th gear
=Locking bolt for reverse gear

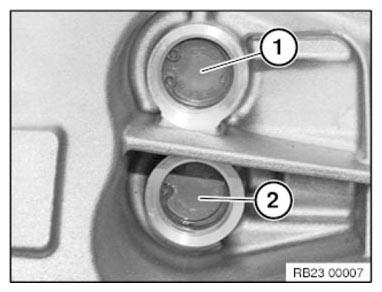

Fig 1: Identifying Locking Bolt For 6Th / Reverse Gear
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: In diesel engines, sealing caps 1 and 2 are located below the circlip.

=Locking bolt for 6th gear
=Locking bolt for reverse gear

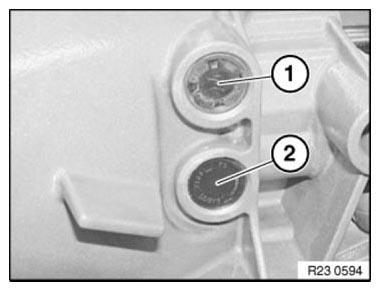

Fig 2: Identifying Locking Bolt For 6Th / Reverse Gear
Courtesy of BMW OF NORTH AMERICA, INC.
