84 21 540 Removing and installing/replacing control unit for hands-free facility
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove storage compartment at rear left. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

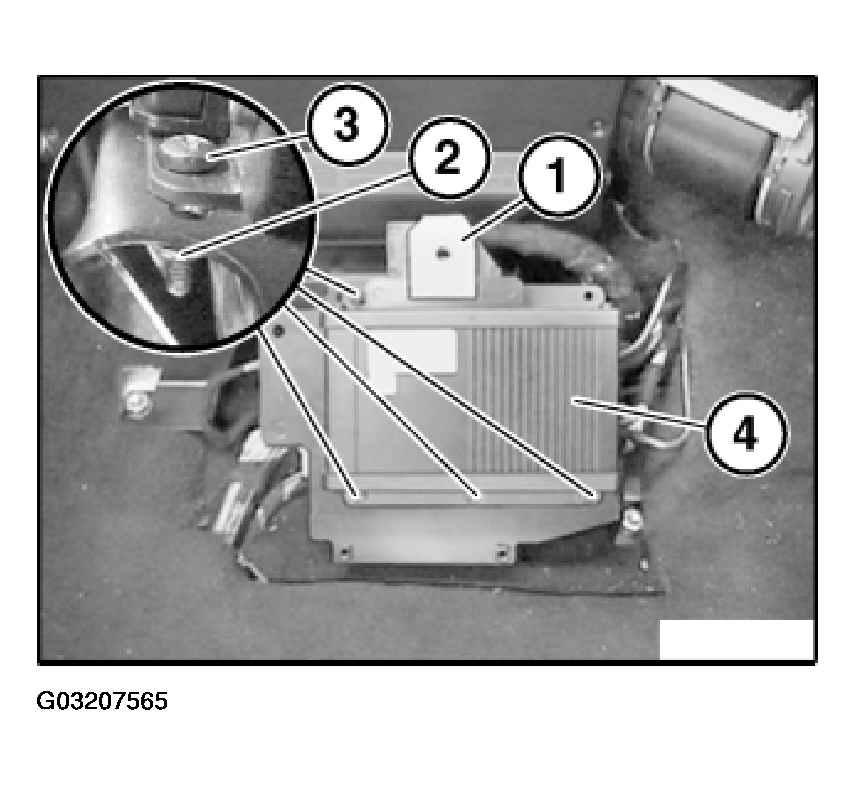

Unlock plug connection (1) and disconnect.
Brace nuts (2) and release screws (3).
Remove control unit for hands-free facility (4).
