65 12 070 Removing and installing/replacing amplifier (under left front seat)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove bass speaker. Refer to 65 12 ... Removing and installing/replacing bass speaker (under left or right front door) .

Cut floor carpet (1) at marked points.

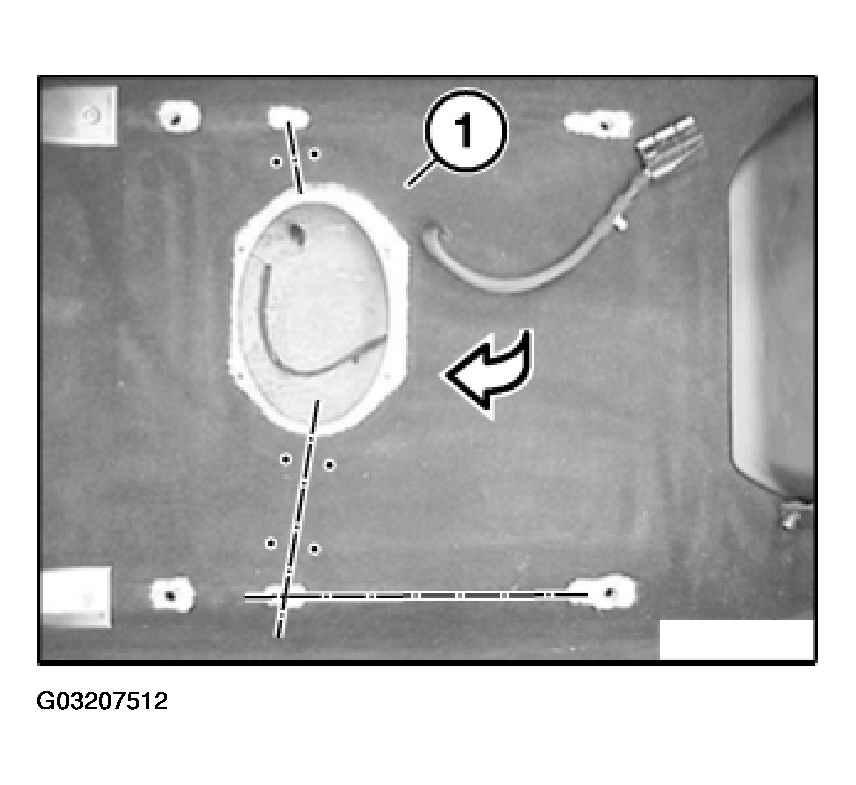

Fig 1: Cutting Floor Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join cutting lines at marked points with cable tape.

Fold back floor carpet in direction of arrow.

Loosen screws (1).

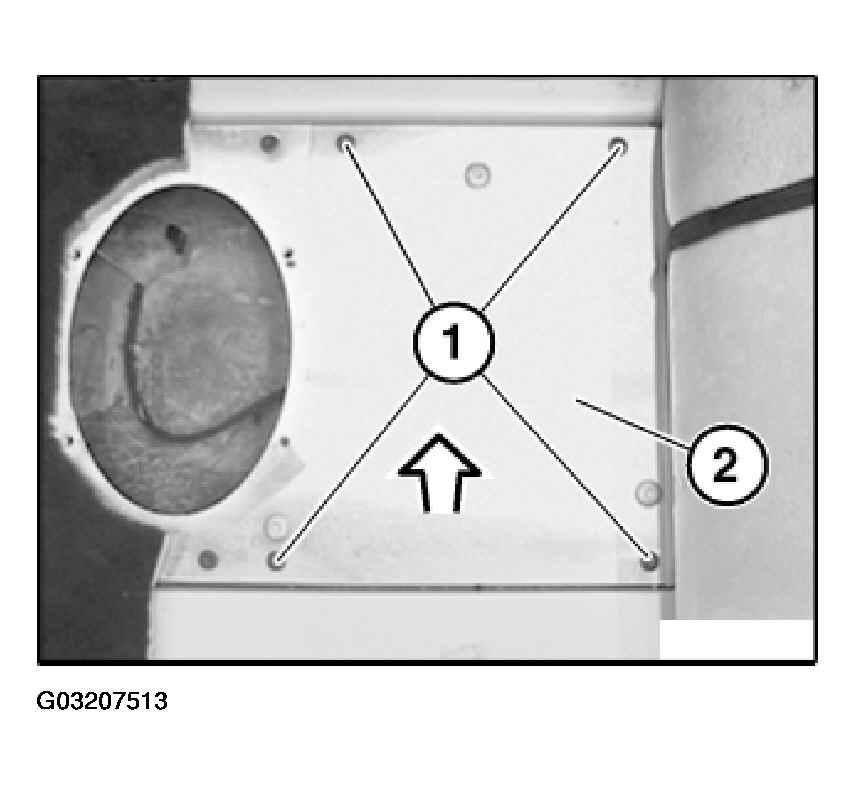

Fig 2: Removing Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining plate (2) in direction of arrow.

Unfasten plug connection and disconnect.

Replacement:

Loosen screws (1).

Installation:

Replace screws (1).

Detach retaining plate (2) from amplifier (3).

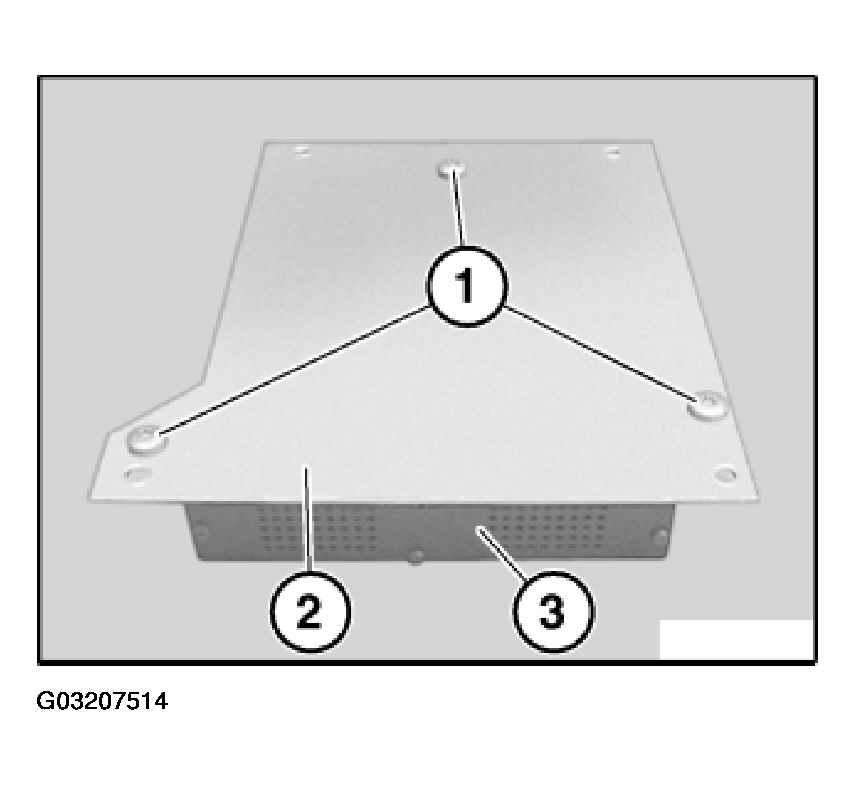

Fig 3: Detaching Retaining Plate From Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
