65 24 010 Removing and installing/replacing antenna amplifier

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

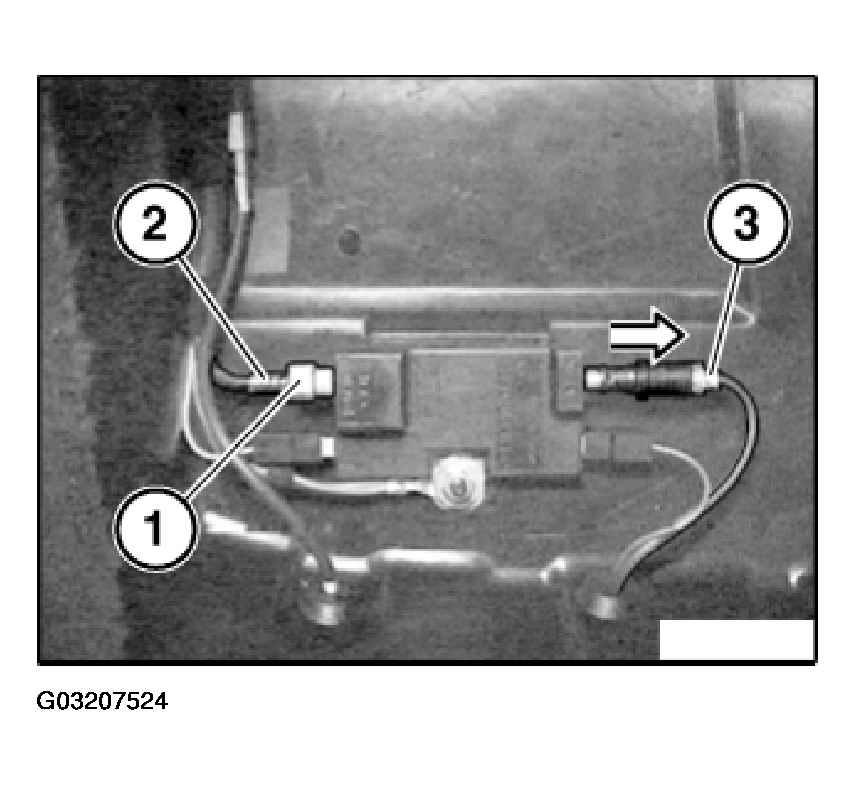

Release knurled nut (1) and disconnect antenna plug (2).

Fig 1: Disconnecting Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.

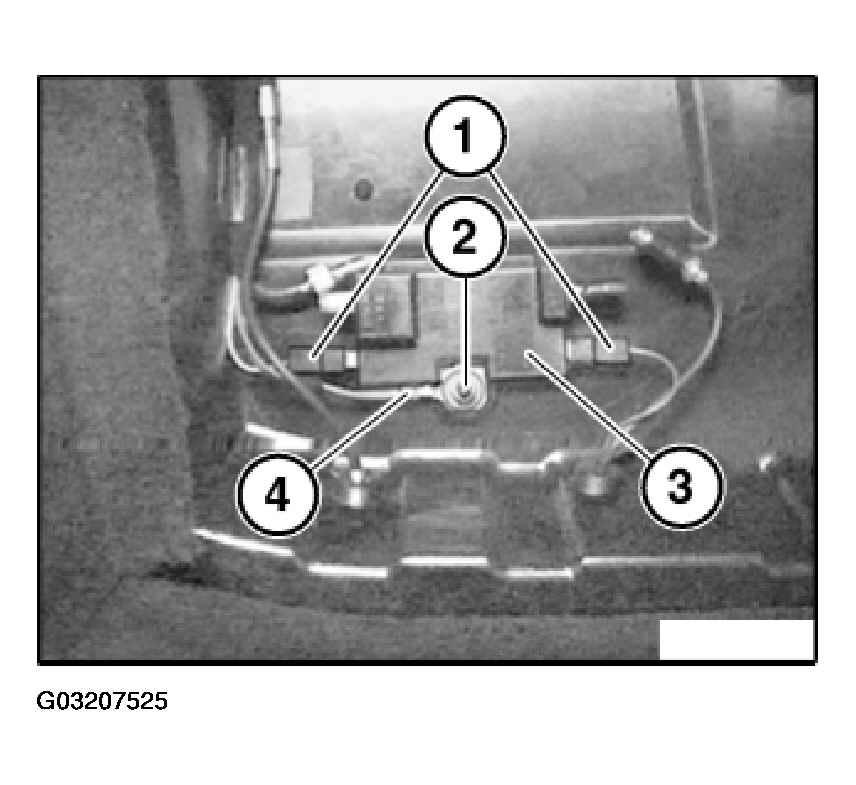

Unlock antenna plug (3) in direction of arrow and disconnect.

Disconnect plug connections (1).

Fig 2: Removing Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove antenna plug (3).

Installation:

Ensure grounding cable (4) is correctly seated.
